Cover (Title) Page
Edit online

Customizing the cover page is one of the most requested customization requests.

Cover Page - Input XML fragment
Edit online

The merged map contains a <oxy:front-page> element, child of the root element. This contains the metadata and an <oxy:front-page-title> element with the title structure.

<bookmap xmlns:ditaarch="http://dita.oasis-open.org/architecture/2005/" ...>
  <oxy:front-page xmlns:oxy="http://www.oxygenxml.com/extensions/author">
   <bookmeta xmlns:dita-ot="http://dita-ot.sourceforge.net/ns/201007/dita-ot"
            ...
   </bookmeta>
   <oxy:front-page-title>
    <booktitle xmlns:dita-ot="http://dita-ot.sourceforge.net/ns/201007/dita-ot"
       class="- topic/title bookmap/booktitle ">
       <booklibrary class="- topic/ph bookmap/booklibrary ">Retro Tools</booklibrary>
       <mainbooktitle class="- topic/ph bookmap/mainbooktitle ">Tasks</mainbooktitle>
       <booktitlealt class="- topic/ph bookmap/booktitlealt ">Product tasks</booktitlealt>
    </booktitle>
   </oxy:front-page-title>
</oxy:front-page>

For the DITA Map PDF - based on HTML5 & CSS transformation type, the merged map is further processed resulting in a collection of HTML5 <div> elements. These elements preserve the original DITA @class attribute values and add a new value derived from the DITA element name.

<div class="- map/map bookmap/bookmap bookmap" ... >
   <div class=" front-page/front-page front-page">
      <div class="- map/topicmeta bookmap/bookmeta boometa">
        ...
      </div>
     <div class=" front-page/front-page-title front-page-title">
       <div class="- topic/title bookmap/booktitle booktitle">
         <div class="- topic/ph bookmap/booklibrary booklibrary">Retro Tools</div>
         <div class="- topic/ph bookmap/mainbooktitle mainbooktitle">Tasks</div>
         <div class="- topic/ph bookmap/booktitlealt booktitlealt">Product tasks</div>
      </div>
...

Cover Page - Built-in CSS rules
Edit online

The element with the class frontpage/frontpage is associated with a page named front-page with no headers or footers. The front page title is styled with a bigger font. The built-in CSS rules are in [PLUGIN_DIR]/css/print/p-front-page.css.

@media print {

    *[class~="front-page/front-page"] {
        page: front-page;
    }

    *[class~="front-page/front-page-title"] {
        display:block;
        text-align:center;
        margin-top:3in;
        font-size:2em;
        font-family:arial, helvetica, sans-serif;
        font-weight:bold;
    }

    @page front-page {
        @top-left-corner    {          content:none }
        @top-left           {          content:none }
        @top-center         {          content:none }
        @top-right          {          content:none }
        @top-right-corner   {          content:none }
        @bottom-left-corner {          content:none }
        @bottom-left        {          content:none }
        @bottom-center      {          content:none }
        @bottom-right       {          content:none }
        @bottom-right-corner{          content:none }
    }
}
Note: This is listed solely for illustration purposes, as the plugin might use something different.

How to Add a Background Image for the Cover
Edit online

The simplest way is to create an SVG image as large as the entire physical page and set it as the background for the front-page. This makes it very easy to accomplish a good positioning of the graphical elements or artwork. In the foreground, you can place text fragments using a series of :after pseudo elements bound to the front page title.

Consider the following SVG document.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN"
       "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd">
<svg xmlns="http://www.w3.org/2000/svg" width="8.5in" height="11in">
    <desc>A gradient as big as a page.</desc>
    <defs>
        <linearGradient id="lc"
            x1="0%" y1="0%"
            x2="0%" y2="100%"
            spreadMethod="pad">
            <stop offset="0%"   stop-color="#00DD00" stop-opacity="1"/>
            <stop offset="100%" stop-color="#00AA00" stop-opacity="1"/>
        </linearGradient>
    </defs>
    <rect x="0" y="0" width="100%" height="100%" rx="10" ry="10"
        style="fill:url(#lc);
        stroke: #005000;
        stroke-width: 3;"/>
    <text x="45%" y="95%"  color="#FFFFAA" font-size="0.7cm"> Sample </text>
</svg>

It shows a gradient, but it can be anything, and the "Sample" text. It is as large as a US-LETTER page and can be used in a publication using this page size.

Note: You can use raster image formats (such as PNG or JPEG), but it is best to use vector images (such as SVG or PDF). They scale very well and produce better results when printed. In addition the text from these images is searchable and can be selected (if the glyphs have not been converted to shapes) in the PDF viewer.

In your customization CSS, add the following:

@page front-page {
    background-image: url("us-letter.svg");
    background-position:center;
}

For smaller artworks, you can use background-position with percentage values to position and center the artwork (for example, a company logo):

@page front-page {
    background-image:url("company-logo.svg");
    background-position:50% 5%; /* The first is the alignement on the X axis, the second on the Y axis.*/
    background-repeat:no-repeat;
}
Note: The text from the SVG or PDF background images are searchable in the PDF reader.

How to Change Styling of the Cover Page Title
Edit online

Match the front page title element in your customization CSS based on its class attribute:
*[class ~= "front-page/front-page-title" {
  margin-top: 1in;
  font-size: 3em;
}

How to Add Text to the Cover Page
Edit online

If you need to add arbitrary text to the cover page, you can use the front page title element as an anchor and add as many blocks of text as you need after it, and style them differently.

In your customization CSS, add the following:

*[class ~= "front-page/front-page-title"]:after(1) {
    display:block;
    content: "DRAFT VERSION";
    font-size: large;
    color: red;
    text-align:center;
}

*[class ~= "front-page/front-page-title"]:after(2) {
    display:block;
    content: "DO NOT DISTRIBUTE WITHOUT PERMISSION";
    font-size: large;
    color: red;
    text-align:center;
    font-style: italic;
}

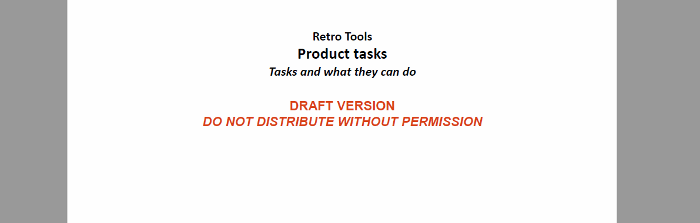

The result is:

Screenshot of a publication front page

To use content from the document, you can use the oxy_xpath function in the content property. For a more complex example, including the generation of a new page for the synthetic :after elements, see: How to Show Metadata in the Cover Page.

How to Place Cover on the Right or Left Side
Edit online

In your customization CSS, add the following CSS rules:

*[class ~= "front-page/front-page"]{
    page-break-before:left;
}
Note: This will create an empty page at the beginning of the publication, moving the cover content on the needed side.

For more information, see: Oxygen PDF Chemistry: Controlling Page Breaks.

How to Add a Specific Number of Empty Pages After the Cover Page
Edit online

In your customization CSS, add the following CSS rules:

@page my-blank-page {
    /* Hide the page numbers */
    @top-left {content: none};
    @top-right {content: none};
}

*[class ~= 'front-page/front-page']:after(1){
    page:my-blank-page;
    display:block;
    content: '\2002';
    color:transparent;
    page-break-after:always;
}

*[class ~= 'front-page/front-page']:after(2){
    page:my-blank-page;
    display:block;
    content: '\2002';
    page-break-after:always;
}

*[class ~= 'front-page/front-page']:after(3){
    page:my-blank-page;
    display:block;
    content: '\2002';
    page-break-after:always;
}
Note: The \2002 character is a space that is not shown on the pages, but gives a value for the content property.

How to Add a Copyright Page after the Map Cover (Not for Bookmaps)
Edit online

Regular DITA maps do not have the concept of a copyright notice. This is available only in the DITA bookmap structure.

If you are constrained to using a regular map and you need to add a copyright page between the front cover and the TOC, use the following technique:

In your customization CSS, declare a new page layout:

@page copyright-notice-page {
  @top-left {
    content:none; /* Clear the headers for the copyright page */
  }
  @top-right {
    content:none;
  }
}

The oxy:front-page element contains the title of the publication and generates the cover page. A synthetic :after element is created that follows this element and it is placed on a different page.

front-page:after{
  display:block;

  page: copyright-notice-page; /* Moves the synthetic element on a new page. */

  margin-top:90%; /* use margins to position the text in the page */
  margin-left: 5em;
  margin-right: 5em;

  content: "Copyright 2018-2019 MyCorp Inc. \A All rights reserved";

  text-align:center; /* More styling */
  color:blue;
}

If you need to add more content as blocks, use the :after(2), :after(3) pseudo elements:

front-page:after(2){
  display:block;
  page: copyright-notice-page;  /* Continue on the same page as the first ':after'. */
  content: "Some more styled text";
  color:red;
}

If you want to extract information from the document, use the oxy_xpath() function. For example, if the copyright info is stored in the map like this:

 <map ...>
  <topicmeta>
    <copyright>
      <copyryear year="2018"/>
      <copyrholder>MyCorp Inc.</copyrholder>
    </copyright>
  </topicmeta>
 ...

Use:

front-page:after(3){
  display:block;
  page: copyright-notice-page;
  content: "Year: " oxy_xpath('//*:front-page/topicmeta/copyright/copyryear/@year')
           "\A Holder: " oxy_xpath('//*:front-page/topicmeta/copyright/copyrholder/text()') ;
  color:green;
}

How to Remove the Cover Page and TOC
Edit online

If you need to hide or remove the cover page, the table of contents or other structures, match the elements with a "front-page/front-page" and "toc/toc" classes in your customization CSS:

*[class ~= 'map/map'] > *[class ~= 'toc/toc'] {
    display:none !important;
}
*[class ~= 'map/map'] > *[class ~= 'front-page/front-page']{
    display:none !important;
}
*[class~='topic/topic'][is-chapter] {
    -oxy-page-group : auto;
}
