WSDL Resource Hierarchy/Dependencies View in WSDL Documents
Edit online

The Resource Hierarchy/Dependencies view allows you to see the hierarchy/dependencies for a WSDL resource. If the view is not displayed, it can be opened by selecting it from the Window > Show View menu.
Note: The hierarchy of a WSDL resource includes the hierarchy of imported XML Schema resources. The dependencies of an XML Schema resource present the WSDL documents that import the schema.

To view the hierarchy of a WSDL document, select the document in the Navigator view and choose Resource Hierarchy from the contextual menu.

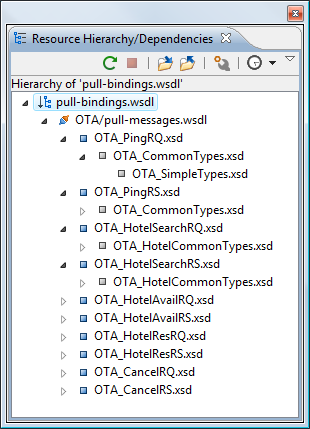

Figure: Resource Hierarchy/Dependencies View

If you want to see the dependencies of a WSDL document, select the document in the Navigator view and choose Resource Dependencies from the contextual menu.

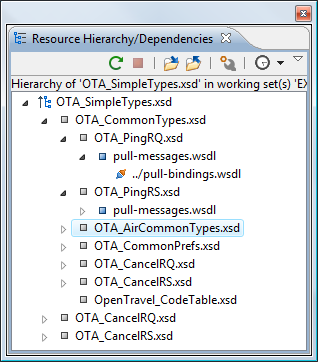

Figure: Resource Hierarchy/Dependencies View
The following actions are available in the Resource Hierarchy/Dependencies view:
Refresh
Refreshes the Hierarchy/Dependencies structure.
Stop
Stops the hierarchy/dependencies computing.
Show Hierarchy
Allows you to choose a resource to compute the hierarchy structure.
Show Dependencies
Allows you to choose a resource to compute the dependencies structure.
Configure
Allows you to configure a scope to compute the dependencies structure. There is also an option for automatically using the defined scope for future operations.
History
Provides access to the list of previously computed dependencies. Use the Clear history button to remove all items from this list.
The contextual menu contains the following actions:
Open
Opens the resource. You can also double-click a resource in the Hierarchy/Dependencies structure to open it.
Copy location
Copies the location of the resource.
Move resource
Moves the selected resource.
Rename resource
Renames the selected resource.
Show Resource Hierarchy
Shows the hierarchy for the selected resource.
Show Resource Dependencies
Shows the dependencies for the selected resource.
Add to Master Files
Adds the currently selected resource in the Master Files directory.
Expand All
Expands all the children of the selected resource from the Hierarchy/Dependencies structure.
Collapse All
Collapses all children of the selected resource from the Hierarchy/Dependencies structure.
Tip: When a recursive reference is encountered in the Hierarchy view, the reference is marked with a special icon .
Note: The Move resource or Rename resource actions give you the option to update the references to the resource.
