Linking in DITA Topics
Edit online

Direct Links

Inline links can be created DITA topics using the xref element. The destination of the link can be expressed directly by using the href attribute and the target can be another topic or a specific element within the other topic, another location within the same topic, a file, or a web link. You can also create direct related links to topics, files, or websites in a DITA topic using the related-links element.

Indirect Links Using Keys

The destination of the link can also be expressed indirectly by using keys to create either inline links or related links (with the keyref attribute). By using keys, you avoid creating a direct dependency between topics. This makes links easier to manage and can make it easier to reuse topics in various publications. It can also be helpful in verifying the completeness of a publication, by ensuring that a publication map provides a key definition for every key reference used in the content.

Links based on keys require two pieces:
  • Key Definition - Assigns a key to a topic so that other topics can link to it. For more information, see Defining Keys in DITA Maps.
  • Key Reference - Created in an xref element and specifies the key to link to.
The key reference points to a key definition, and the key definition points to a topic. Key definitions are created in maps, as an element on the topicref element that points to a topic. This allows you to assign a particular key to one topic in one map and to another topic in another map. When a topic that links to that key is used in each of these maps, the links work correctly in both maps.

Inserting a Link in Oxygen XML Editor plugin

To insert a link in Author mode, use the actions available in the Link drop-down menu from the toolbar (or the Link submenu in the contextual menu or DITA menu). You can choose between the following types of inline links:

Cross Reference
Opens the Cross Reference (xref) dialog box that allows you to insert a cross reference link to a target DITA resource at the current location within a document. The target resource can be the location of a file or a key that is already defined in your DITA map structure. Once the target resource has been selected, you can also target specific elements within that resource. Depending on the context where it is invoked, the action inserts one of the following two elements:
  • xref - Used to link to other topics or another location within the same topic and points to the target using the href or keyref attribute.
  • fragref - A logical reference to a fragment element within a syntax diagram and points to the target using the href or keyref attribute.
File Reference
Opens a dialog box that allows you to insert a link to a target non-DITA file resource at the current location within a document. The target resource can be the location of a file or a key that is already defined in your DITA map structure. It inserts an xref element with either an href attribute or a keyref attribute. If you select Location for the target, the link is expressed in an href attribute. If you select Key for the target, keys will be used to express the link in a keyref attribute. You can select a key from the drop-down list or click the Choose Key Reference button to use the Choose Key dialog box.
Web Link
Opens a dialog box that allows you to insert a link to a target web-related resource at the current location within a document. The target resource can be a URL or a key that is already defined in your DITA map structure. It inserts an xref element with either an href attribute or a keyref attribute. If you select URL for the target resource, the link is expressed in an href attribute. If you select Key for the target, keys will be used to express the link in a keyref attribute. You can select a key from the drop-down list or click the Choose Key Reference button to use the Choose Key dialog box.
Related Link to Topic
Opens the Cross Reference (xref) dialog box that allows you to insert a link to a target DITA resource in a related links section that is typically at the bottom of your topic (although this depends on the behavior of the output transformation). The target resource can be the location of a file or a key that is already defined in your DITA map structure. Once the target resource has been selected, you can also target specific elements within that resource. If a related links section does not already exist, this action creates one. Specifically, it inserts a link element inside a related-links element.
Related Link to File
Opens a dialog box that allows you to insert a link to a target non-DITA file resource in a related links section that is typically at the bottom of your topic (although this depends on the behavior of the output transformation). The target resource can be the location of a file or a key that is already defined in your DITA map structure. If a related links section does not already exist, this action creates one. Specifically, it inserts a link element inside a related-links element. If you select Location for the target, the link is expressed in an href attribute. If you select Key for the target, keys will be used to express the link in a keyref attribute. You can select a key from the drop-down list or click the Choose Key Reference button to use the Choose Key dialog box.
Related Link to Web Page
Opens the Web Link dialog box that allows you to insert a link to a target web-related resource in a related links section that is typically at the bottom of your topic (although this depends on the behavior of the output transformation). The target resource can be a URL or a key that is already defined in your DITA map structure. If a related links section does not already exist, this action creates one. Specifically, it inserts a link element inside a related-links element. If you select URL for the target resource, the link is expressed in an href attribute. If you select Key for the target, keys will be used to express the link in a keyref attribute. You can select a key from the drop-down list or click the Choose Key Reference button to use the Choose Key dialog box.

Cross Reference (xref) Dialog Box

The Cross Reference (xref) dialog box is displayed when you insert a Cross Reference or Related Link to Topic (from the Link drop-down menu). It allows you to insert a link to a target resource at the current location within a document (for a Cross Reference link) or in a related links section (for a Related Link to Topic). The target resource can be the location of a file or a key that is already defined in your DITA map structure. Once the target resource has been selected, you can also target specific elements within that resource.

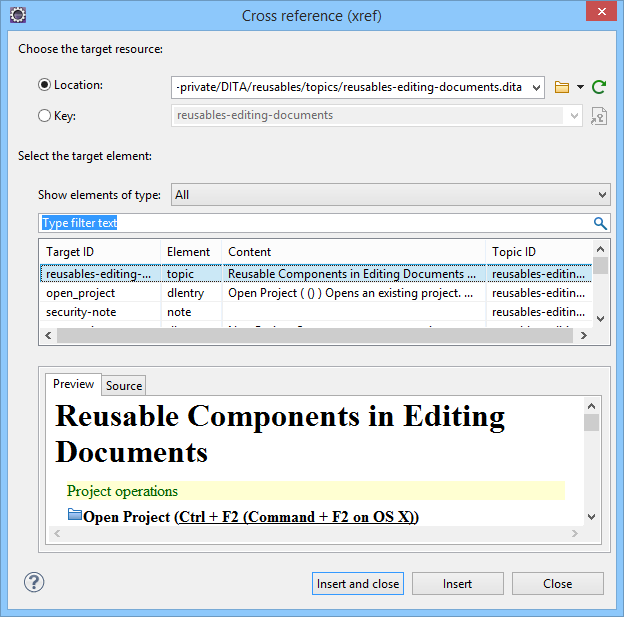

Figure: Cross Reference (xref) Dialog Box
This dialog box includes the following sections and fields:
Choose the Target Resource Section
Location
If you select Location for the target, the link is expressed in an href attribute.
Key
If you select Key for the target, keys will be used to express the link in a keyref attribute. You can use the Choose Key Reference button to open the Choose Key dialog box that allows you to select one from a list of all the keys that are gathered from the root map (you can also select one from the drop-down list in the Key field).
Tip: You can also use the DITA Reusable Components view for similar purposes.
Figure: Choose Key Dialog Box
The Choose Key dialog box includes the following:
  • Change Root Map - Opens a small dialog box that allows you to select a root map.
  • Search Filter - You can enter text in the filter field at the top of the dialog box to filter the list and search for specific keys.
  • Sortable Columns - The dialog box includes the following columns that can be sorted by clicking on the heading:
    • Key - The name of the key.
    • Description - The description of the key that is obtained from the definition of the key (for example, the description for a keydef would be found in the keyword element inside topicmeta, or the description for a topicref would be found in a navitle element). For more information about where the data in this column is collected, see Description Column Data Collection.
    • Href - The value of the href where the key points to.
    • Definition Location - The name of the DITA map where the key is defined.
  • Group by Definition Location - A contextual menu action that can be used to group (and sort) all the keys based upon the value in the Definition Location column.
Select the Target Element Section
This section can be used to target a specific element inside the target resource.
Show elements of type
You can use this drop-down list to select specific types of elements to be displayed in the subsequent table. This can help you narrow down the list of possible source elements that you can select.
Text Filter Field
You can also use the text filter field to narrow down the list of possible source elements to be displayed in the subsequent table.
Element Table
Presents all the element IDs defined in the source topic. Use this table to select the Target ID of the element that you want to reference.
Preview Pane
Displays the content that will be references.
Source Pane
Displays the XML source code of the element to be referenced.
Once you click Insert or Insert and close, the configured cross reference is inserted into your document.
Tip: You can easily insert multiple cross references by keeping the dialog box opened, using the Insert button.

Using Copy/Paste Actions to Insert a Cross Reference

Oxygen XML Editor plugin also includes support for inserting cross references with simple copy/paste actions. The copied content must be an entire DITA XML element with an ID attribute or a topicref. Also, the location in the document where you paste the link must be valid, although as long as the Smart paste and drag and drop option is selected in the Schema Aware preferences page, if you try to paste it in an invalid location, Oxygen XML Editor plugin will attempt to place it in a valid location, and may prompt you with one or more choices for where to place it. You can paste the link as a cross reference with the link expressed in an href attribute or in a keyref attribute.

To insert a cross reference link (expressed in an href attribute) using copy/paste actions, follow these steps:
  1. Copy an entire DITA element that has an ID attribute assigned to it or a topicref.
  2. Place the cursor at a location, where you want to insert the link.
  3. Select the Paste as Link action from the Paste Special submenu from the contextual menu.
To insert a cross reference link (expressed in a keyref attribute) using copy/paste actions, follow these steps:
  1. In the DITA Maps Manager view, make sure that the Root map combo box points to the correct map that stores the keys.
  2. Make sure the topic that contains the content you want to reference has a key assigned to it. To assign a key, right-click the topic with its parent map opened in the DITA Maps Manager, select Edit Properties, and enter a value in the Keys field.
  3. Copy an entire DITA element that has an ID attribute assigned to it from a topic with an assigned key, or a topicref from a DITA map.
  4. Place the cursor at a location, where you want to insert the link.
  5. Select the Paste as Link (keyref) action from the Paste Special submenu from the contextual menu.
