Publishing Template Package Contents for WebHelp Responsive Customizations

Edit online

<publishing-template>
    <name>Lorem Ipsum</name>
    <description>Lorem ipsum dolor sit amet, consectetur adipiscing elit</description>
    ...

<publishing-template>
    ...
    <author>
      <name>John Doe</name>
      <email>jdoe@example.com</email>
      <organization>ACME</organization>
      <organizationUrl>http://www.example.com/jdoe</organizationUrl>
    </author>
    ...

Online preview

<publishing-template>
    ...
    <webhelp>
      ...
      <preview-image file="ashes/ashes-tree.png"/>
      <online-preview-url=https://www.example.com/samples/tiles/ashes</online-preview-url>

Publication Title (webhelp_publication_title)

This component generates the publication title in the output. To generate this component, the webhelp_publication_title element must be specified in the HTML file as in the following example:

<whc:webhelp_publication_title
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_publication_title.

Publication Logo (webhelp_logo)

This component generates a logo image in the output. To generate this component, the webhelp_logo element must be specified in the HTML file as in the following example:

<whc:webhelp_logo
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In addition, you must also specify the path of the logo image in the webhelp.logo.image transformation parameter (in the Parameters tab in the transformation scenario). You can set the webhelp.logo.image.target.url parameter to generate a link to a URL when you click the logo image.

In the output, you will find an element with the class: wh_logo.

Search Input (webhelp_search_input)

This component is used to generate the input widget associated with search function in the output. To generate this component, the webhelp_search_input element must be specified in the HTML file as in the following example:

<whc:webhelp_search_input
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_search_input.

Print Link (webhelp_print_link)

This component is used to generate a print icon that opens the print dialog box for your particular browser. To generate this component, the webhelp_print_link element must be specified in the HTML file as in the following example:

<whc:webhelp_print_link
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_print_link.

Main Menu (webhelp_top_menu)

This component generates a menu with all the documentation topics. To generate this component, the webhelp_top_menu element must be specified in the HTML file as in the following example:

<whc:webhelp_top_menu
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_top_menu.

You can control the maximum level of topics that will be included in the menu using the webhelp.top.menu.depth transformation parameter (in the Parameters tab of the transformation scenario).

For information about customizing the menu, see How to Customize the Menu.

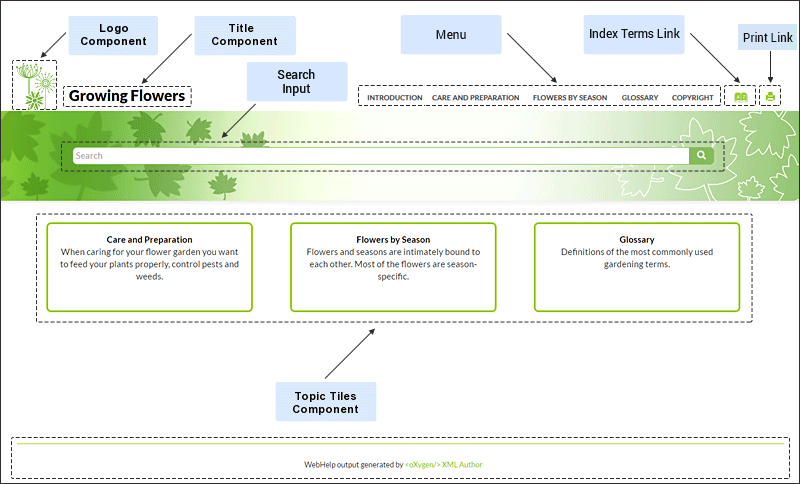

Main Page Topic Tiles (webhelp_tiles)

This component generates the tiles section in the main page. This section will contain a tile for each root topic of the published documentation. Each topic tile has three sections that corresponds to the topic title, short description, and image. To generate this component, the webhelp_tiles element must be specified in the HTML file as in the following example:

<whc:webhelp_tiles
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_tiles.

If you want to control the HTML structure that is generated for a WebHelp tile you can also specify the template for a tile by using the whc:webhelp_tile component, as in the following example:

<whc:webhelp_tile class="col-md-4">
  <!-- Place holder for tile's image -->
  <whc:webhelp_tile_image/>

  <div class="wh_tile_text">
    <!-- Place holder for tile's title -->
     <whc:webhelp_tile_title/>

     <!-- Place holder for tile's shordesc -->
     <whc:webhelp_tile_shortdesc/>
  </div>
</whc:webhelp_tile>

For information about customizing the tiles, see How to Configure the Tiles on the WebHelp Responsive Main Page.

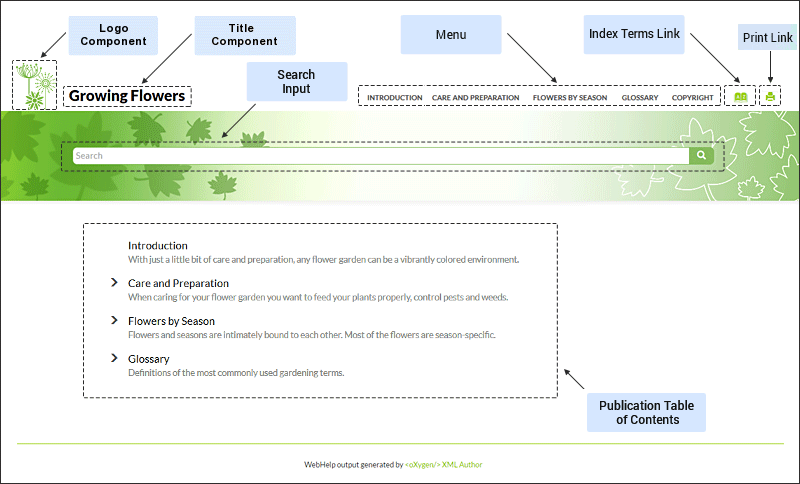

Main Page Table of Contents (webhelp_main_page_toc)

This component generates a simplified Table of Contents. It is simplified because it contains only two levels from the documentation hierarchy. To generate this component, the webhelp_main_page_toc element must be specified in the HTML file as in the following example:

<whc:webhelp_main_page_toc
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_main_page_toc.

Index Terms Link (webhelp_indexterms_link)

This component can be used to generate a link to the index terms page (indexterms.html). If the published documentation does not contains any index terms, then the link will not be generated. To generate this component, the webhelp_indexterms_link element must be specified in the HTML file as in the following example:

<whc:webhelp_indexterms_link
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_indexterms_link. This element will contain a link to the indexterms.html page.

Link to Skins Resources (webhelp_skin_resources)

This component can be used to add a link to resources for the current WebHelp skin (such as the CSS file). To generate this component, the webhelp_skin_resources element must be specified in the HTML file as in the following example:

<whc:webhelp_skin_resources/>

In the output, you will find a link to the skin resources.

Publication Title (webhelp_publication_title)

This component generates the publication title in the output. To generate this component, the webhelp_publication_title element must be specified in the HTML file as in the following example:

<whc:webhelp_publication_title
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_publication_title.

Publication Logo (webhelp_logo)

This component generates a logo image in the output. To generate this component, the webhelp_logo element must be specified in the HTML file as in the following example:

<whc:webhelp_logo
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In addition, you must also specify the path of the logo image in the webhelp.logo.image transformation parameter (in the Parameters tab in the transformation scenario). You can set the webhelp.logo.image.target.url parameter to generate a link to a URL when you click the logo image.

In the output, you will find an element with the class: wh_logo.

Search Input (webhelp_search_input)

This component is used to generate the input widget associated with search function in the output. To generate this component, the webhelp_search_input element must be specified in the HTML file as in the following example:

<whc:webhelp_search_input
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_search_input.

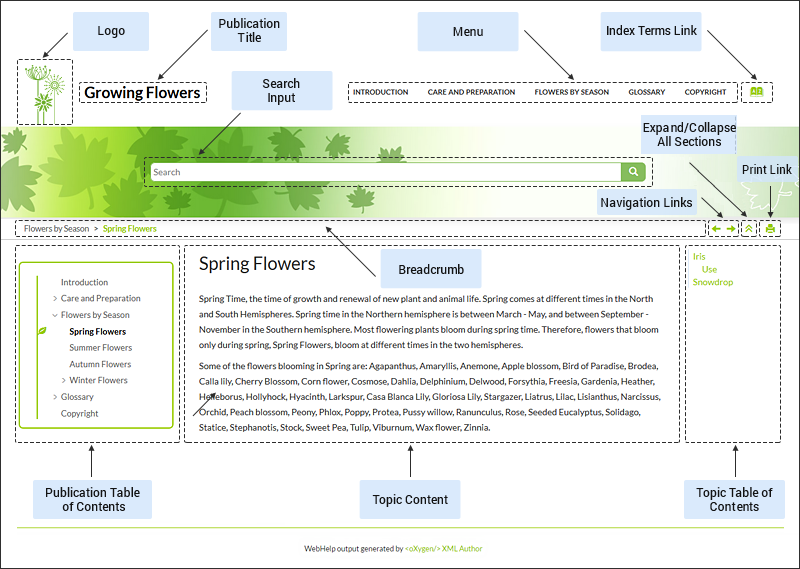

Topic Breadcrumb (webhelp_breadcrumb)

This component generates a breadcrumb that displays the path of the current topic. To generate this component, the webhelp_breadcrumb element must be specified in the HTML file as in the following example:

<whc:webhelp_breadcrumb
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_breadcrumb. This element will contain a list with items that correspond to the topics in the path. The first item in the list has a link to the main page with the home class. The last item in the list corresponds to the current topic and has the active class set.

Navigation Links (webhelp_navigation_links)

This component generates navigation links to the next and previous topics. To generate this component, the webhelp_navigation_links element must be specified in the HTML file as in the following example:

<whc:webhelp_navigation_links
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_navigation_links. This element will contain the links to the next and previous topics.

Print Link (webhelp_print_link)

This component is used to generate a print icon that opens the print dialog box for your particular browser. To generate this component, the webhelp_print_link element must be specified in the HTML file as in the following example:

<whc:webhelp_print_link
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_print_link.

Topic Content (webhelp_topic_content)

This component generates the content of a topic and it represent the content of the HTML files as they are produced by the DITA-OT processor. To generate this component, the webhelp_topic_content element must be specified in the HTML file as in the following example:

<whc:webhelp_topic_content
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_topic_content.

Publication TOC (webhelp_publication_toc)

This component generates a mini table of contents for the current topic (on the left side). It will contain links to the children of current topic, its siblings, and all of its ancestors. To generate this component, the webhelp_publication_toc element must be specified in the HTML file as in the following example:

<whc:webhelp_publication_toc
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_publication_toc. This element will contain links to the topics that are close to the current topic.

Topic TOC (webhelp_topic_toc)

This component generates a topic table of contents for the current topic (on the right side). This table of contents contains links to each section within the current topic and the section corresponding to the current scroll position is highlighted. To generate this component, the webhelp_topic_toc element must be specified in the HTML file as in the following example:

<whc:webhelp_topic_toc
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_topic_toc. This element will contain links to the topics that are close to the current topic.

Expand/Collapse Sections (webhelp_expand_collapse_sections)

This component is used to generate an icon that expands or collapses sections listed in the side table of contents within a topic. To generate this component, the webhelp_expand_collapse_sections element must be specified in the HTML file as in the following example:

<whc:webhelp_expand_collapse_sections
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: webhelp_expand_collapse_sections.

Topic Feedback (webhelp_feedback)

This component generates a placeholder for where the comments section will be presented. To generate this component, the webhelp_feedback element must be specified in the HTML file as in the following example:

<whc:webhelp_feedback
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

Main Menu (webhelp_top_menu)

This component generates a menu with all the documentation topics. To generate this component, the webhelp_top_menu element must be specified in the HTML file as in the following example:

<whc:webhelp_top_menu
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_top_menu.

You can control the maximum level of topics that will be included in the menu using the webhelp.top.menu.depth transformation parameter (in the Parameters tab of the transformation scenario).

For information about customizing the menu, see How to Customize the Menu.

Index Terms Link (webhelp_indexterms_link)

This component can be used to generate a link to the index terms page (indexterms.html). If the published documentation does not contains any index terms, then the link will not be generated. To generate this component, the webhelp_indexterms_link element must be specified in the HTML file as in the following example:

<whc:webhelp_indexterms_link
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_indexterms_link. This element will contain a link to the indexterms.html page.

Child Links (webhelp_child_links)

For all topics with subtopics (child topics), this component generates a list of links to each child topic. To generate this component, the webhelp_child_links element must be specified in the HTML file as in the following example:

<whc:webhelp_child_links
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

Related Links (webhelp_related_links)

For all topics that contain related links, this component generates a list of related links that will appear in the output. To generate this component, the webhelp_related_links element must be specified in the HTML file as in the following example:

<whc:webhelp_related_links
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

Link to Skins Resources (webhelp_skin_resources)

This component can be used to add a link to resources for the current WebHelp skin (such as the CSS file). To generate this component, the webhelp_skin_resources element must be specified in the HTML file as in the following example:

<whc:webhelp_skin_resources/>

In the output, you will find a link to the skin resources.

Publication Title (webhelp_publication_title)

This component generates the publication title in the output. To generate this component, the webhelp_publication_title element must be specified in the HTML file as in the following example:

<whc:webhelp_publication_title
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_publication_title.

Publication Logo (webhelp_logo)

This component generates a logo image in the output. To generate this component, the webhelp_logo element must be specified in the HTML file as in the following example:

<whc:webhelp_logo
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In addition, you must also specify the path of the logo image in the webhelp.logo.image transformation parameter (in the Parameters tab in the transformation scenario). You can set the webhelp.logo.image.target.url parameter to generate a link to a URL when you click the logo image.

In the output, you will find an element with the class: wh_logo.

Search Input (webhelp_search_input)

This component is used to generate the input widget associated with search function in the output. To generate this component, the webhelp_search_input element must be specified in the HTML file as in the following example:

<whc:webhelp_search_input
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_search_input.

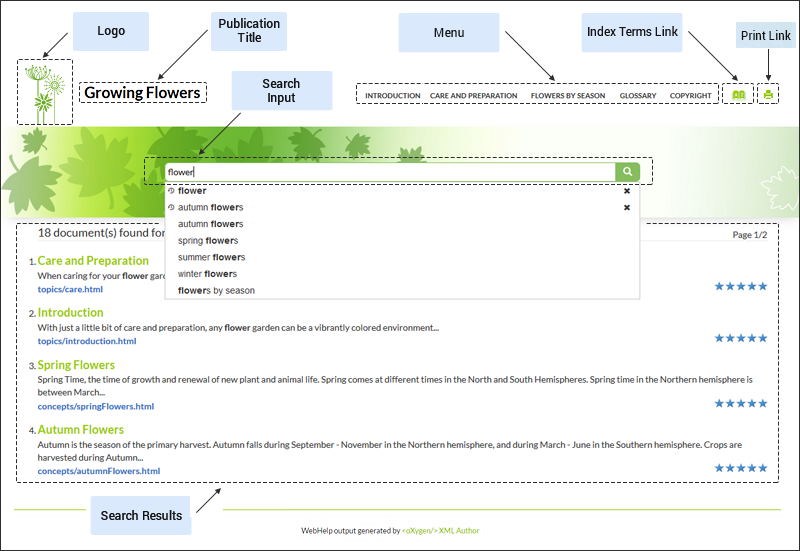

Search Results (webhelp_search_results)

This component is used to generate a placeholder to signal where the search results will be presented in the output. To generate this component, the webhelp_search_results element must be specified in the HTML file as in the following example:

<whc:webhelp_search_results
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_search_results.

Print Link (webhelp_print_link)

This component is used to generate a print icon that opens the print dialog box for your particular browser. To generate this component, the webhelp_print_link element must be specified in the HTML file as in the following example:

<whc:webhelp_print_link
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_print_link.

Main Menu (webhelp_top_menu)

This component generates a menu with all the documentation topics. To generate this component, the webhelp_top_menu element must be specified in the HTML file as in the following example:

<whc:webhelp_top_menu
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_top_menu.

You can control the maximum level of topics that will be included in the menu using the webhelp.top.menu.depth transformation parameter (in the Parameters tab of the transformation scenario).

For information about customizing the menu, see How to Customize the Menu.

Index Terms Link (webhelp_indexterms_link)

This component can be used to generate a link to the index terms page (indexterms.html). If the published documentation does not contains any index terms, then the link will not be generated. To generate this component, the webhelp_indexterms_link element must be specified in the HTML file as in the following example:

<whc:webhelp_indexterms_link
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_indexterms_link. This element will contain a link to the indexterms.html page.

Link to Skins Resources (webhelp_skin_resources)

This component can be used to add a link to resources for the current WebHelp skin (such as the CSS file). To generate this component, the webhelp_skin_resources element must be specified in the HTML file as in the following example:

<whc:webhelp_skin_resources/>

In the output, you will find a link to the skin resources.

Publication Title (webhelp_publication_title)

This component generates the publication title in the output. To generate this component, the webhelp_publication_title element must be specified in the HTML file as in the following example:

<whc:webhelp_publication_title
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_publication_title.

Publication Logo (webhelp_logo)

This component generates a logo image in the output. To generate this component, the webhelp_logo element must be specified in the HTML file as in the following example:

<whc:webhelp_logo
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In addition, you must also specify the path of the logo image in the webhelp.logo.image transformation parameter (in the Parameters tab in the transformation scenario). You can set the webhelp.logo.image.target.url parameter to generate a link to a URL when you click the logo image.

In the output, you will find an element with the class: wh_logo.

Search Input (webhelp_search_input)

This component is used to generate the input widget associated with search function in the output. To generate this component, the webhelp_search_input element must be specified in the HTML file as in the following example:

<whc:webhelp_search_input
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_search_input.

Print Link (webhelp_print_link)

This component is used to generate a print icon that opens the print dialog box for your particular browser. To generate this component, the webhelp_print_link element must be specified in the HTML file as in the following example:

<whc:webhelp_print_link
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_print_link.

Main Menu (webhelp_top_menu)

This component generates a menu with all the documentation topics. To generate this component, the webhelp_top_menu element must be specified in the HTML file as in the following example:

<whc:webhelp_top_menu
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_top_menu.

You can control the maximum level of topics that will be included in the menu using the webhelp.top.menu.depth transformation parameter (in the Parameters tab of the transformation scenario).

For information about customizing the menu, see How to Customize the Menu.

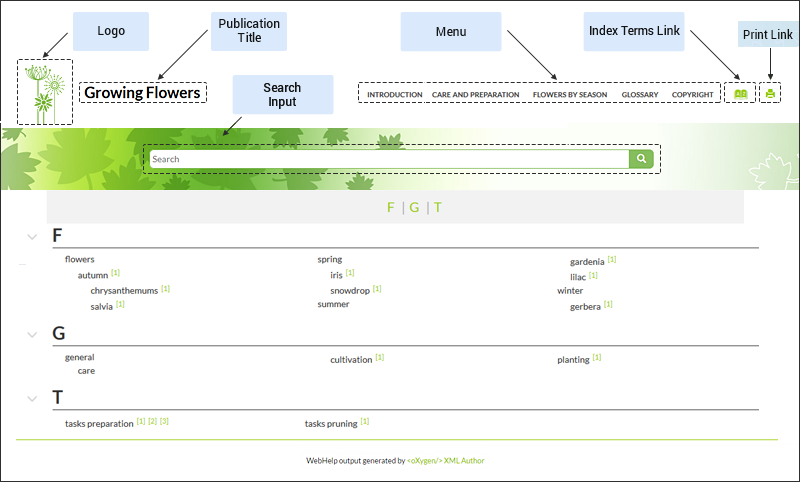

Index Terms Link (webhelp_indexterms_link)

This component can be used to generate a link to the index terms page (indexterms.html). If the published documentation does not contains any index terms, then the link will not be generated. To generate this component, the webhelp_indexterms_link element must be specified in the HTML file as in the following example:

<whc:webhelp_indexterms_link
     xmlns:whc="http://www.oxygenxml.com/webhelp/components"/>

In the output, you will find an element with the class: wh_indexterms_link. This element will contain a link to the indexterms.html page.

Link to Skins Resources (webhelp_skin_resources)

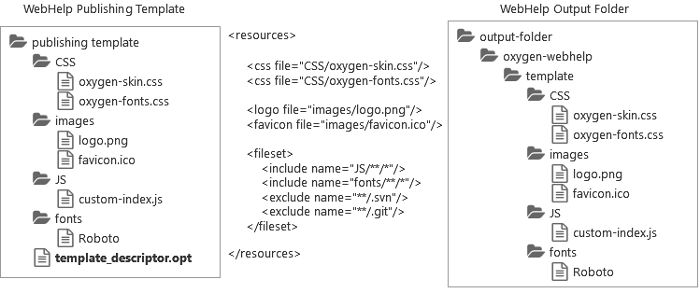

This component can be used to add a link to resources for the current WebHelp skin (such as the CSS file). To generate this component, the webhelp_skin_resources element must be specified in the HTML file as in the following example:

<whc:webhelp_skin_resources/>

In the output, you will find a link to the skin resources.

i18n

For localizing a string.

${i18n(string.id)}

param

Returns the value of a transformation parameter.

${param(webhelp.show.main.page.tiles)}

env

Returns the value of an environment variable.

${env(JAVA_HOME)}

system-property

Returns the value of a system property.

${system-property(os.name)}

timestamp

Can be used to format the current date and time. Accepts a string (as a parameter) that determines how the date and time will be formatted (format string or picture string as it is known in the XSLT specification). The format string must comply with the rules of the XSLT format-dateTime function specification.

${timestamp([h1]:[m01] [P] [M01]/[D01]/[Y0001])}

path

Returns the path associated with the specified path ID. The following paths IDs are supported:

• oxygen-webhelp-output-dir - The path to the output directory. The path is relative to the current HTML file.
• oxygen-webhelp-assets-dir - The path to the oxygen-webhelp subdirectory from the output directory. The path is relative to the current HTML file.
• oxygen-webhelp-template-dir - The path to the template directory. The path is relative to the current HTML file.

  ${path(oxygen-webhelp-template-dir)}

Note: New paths IDs can be added by overriding the wh-macro-custom-path template from com.oxygenxml.webhelp.responsive\xsl\template\macroExpander.xsl:

<!-- Extension template for expanding a custom path macro. -->
<xsl:template name="wh-macro-custom-path">
    <xsl:param name="pathId"/>
    <xsl:value-of select="$pathId"/>
</xsl:template>

map-xpath

Can be used to execute an XPath expression over the DITA map file from the temporary directory.

Tip: Available in all template layout HTML pages.

${map-xpath(/map/title)}

topic-xpath

Can be used to execute an XPath expression over the current topic.

Tip: Available only in the topic HTML page template (wt_topic.html).

${topic-xpath(string-join(//shortdesc//text(), ' '))}

oxygen-webhelp-build-number

Returns the current WebHelp distribution ID (build number).

${oxygen-webhelp-build-number}

<!-- Extension template for expanding custom macro constructs -->
<xsl:template name="wh-macro-extension">
    <xsl:param name="name"/>
    <xsl:param name="params"/>
    <xsl:param name="contextNode"/>
    <xsl:param name="matchedString"/>

    <xsl:choose>
        <xsl:when test="$contextNode instance of attribute()">
            <xsl:value-of select="$matchedString"/>
        </xsl:when>
        <xsl:otherwise>
            <xsl:message>Cannot expand macro:
                [<xsl:value-of select="$matchedString"/>]</xsl:message>
            <xsl:copy-of select="$contextNode"/>
        </xsl:otherwise>
    </xsl:choose>
</xsl:template>

• name - The name of the current macro.
• params - List of parameters of the current macro as string sequence. The current macros parsing mechanism only allows macros with a maximum of one parameter. Consequently, this list will contain at most one element.
• contextNode - The current element or attribute where the macro was declared.
• matchedString - The entire value of the matched macro as specified in the HTML template page.
