Dashboard - Creating or Opening Documents
Edit online

The Oxygen XML Web Author has a user-friendly Dashboard where you can create new documents and open existing documents from your particular type of file repository integration (each type has its own unique tab). It also provides a tab with various sample documents. You can easily access the Dashboard at any time while editing documents by simply clicking the Oxygen XML Web Author icon at the top-left corner of the screen.

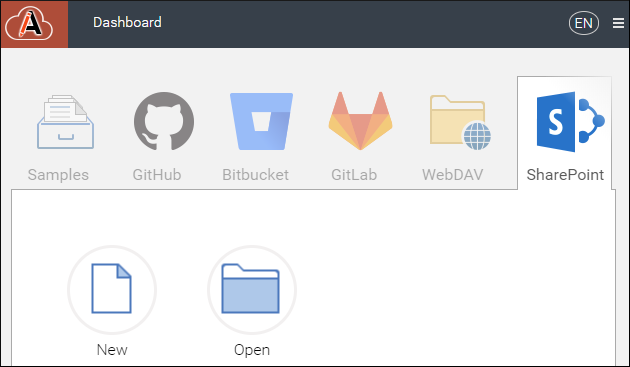

Figure: Oxygen XML Web Author Dashboard

Changing the Language

To change the language for the interface, click the Language icon in the top-right corner of the Dashboard and select the desired language. By default, you can choose from: English, German, French, Japanese, or Dutch.

Help Menu

The Dashboard page contains a Menu button in the top-right corner that contains some options to help you report issues or find more information. Clicking this button presents the following options:
  • Report Problem - You can use this option to open a dialog box that allows you to write the description of a problem that was encountered while using the application. You can also select additional information to be sent to the technical support team in the various tabs.
  • Help - Opens a WebHelp version of the Oxygen XML Web Author user manual.
  • About - Displays information about your Oxygen XML Web Author version and license.

Creating a New Document

To create a new document, follow these steps:
  1. Go to your Oxygen XML Web Author Dashboard page.
  2. Click the tab for your particular file repository integration.
  3. Click New. Depending on the type of repository, you may need to log in to your repository service, or choose the choose the URL of the root folder where you want to save the file.
  4. Select a document template and click OK.
  5. If you need to change the repository, server, or branch, click the Edit button.
  6. Select a destination path and name for the new document.
  7. Click Save.

Result: The new document will be opened in a new browser tab.

Opening a Document

To open a document, follow these steps:
  1. Go to your Oxygen XML Web Author Dashboard page.
  2. Click the tab for your particular file repository integration.
  3. Depending on the type of repository, you may need to log in to your repository service, or choose the choose the URL of the root folder where the file is located.
  4. If you need to change the repository, server, or branch, click the Edit button.
    Tip: If a file is not already in your repository, you can use the Upload File button to upload it to the repository before selecting it.
  5. Once you have found the file you want to open, double-click it.
Result: The selected document will be opened in a new browser tab.
Note: If you try to open a file with a format that is not supported, a page will be displayed that explains that the document could not be loaded. This page includes a Download file button that allows you to download the file so you can view or edit it in a local system application.

Unlocking a File Stored on a WebDAV Connection

When opening files on a WebDAV server, by default the files are automatically locked to prevent anyone using another connection to that WebDAV server from changing the file. There is an option that can be disabled by a system administrator to change this behavior.

To unlock WebDAV files, a system administrator can follow these steps:
  1. Go to the Administration Page.
  2. Select Plugins.
  3. Click the Configure icon for the WebDAV plugin.
  4. Deselect the Lock resources on open option.
