Search Actions
The following search actions can be applied on attribute, attributeGroup, element, group, key, unique, keyref, notation, simple, or complex types and are available from the Search submenu in the contextual menu of the current editor:
Search References - Searches all references of the
item found at current cursor position in the defined scope, if any. If a scope is defined,
but the current edited resource is not part of the range of resources determined by this,
a warning dialog box is displayed and you have the possibility to define another search
scope. - Search References in - Searches all references of the item found at current cursor position in the file or files that you specify when define a scope in the Search References dialog box.
Search Declarations - Searches all declarations of
the item found at current cursor position in the defined scope if any. If a scope is
defined, but the current edited resource is not part of the range of resources determined
by this, a warning dialog box will be displayed and you have the possibility to define
another search scope.- Search Declarations in - Searches all declarations of the item found at current cursor position in the file or files that you specify when you define a scope for the search operation.
Search Occurrences in File - Searches all
occurrences of the item at the cursor position in the currently edited file.
The following action is available from the XSL menu:
Show
Definition - Moves the cursor to the definition of the referenced XML Schema
item.Note: You can also use the Ctrl Single-Click (Command Single-Click on OS X) shortcut on a reference to display its definition.
Refactoring Actions
The following refactoring actions can be applied on attribute, attributeGroup, element, group, key, unique, keyref, notation, simple, or complex types and are available from the Refactoring submenu in the contextual menu of the current editor:
- Rename Component - Allows you to rename the current component in-place. The component and all its references in the document are highlighted with a thin border and the changes you make to the component at the cursor position are updated in real time to all occurrences of the component. To exit in-place editing, press the Esc or Enter key on your keyboard.
Rename Component in - Opens the Rename
component_type dialog box that allows you to rename the
selected component by specifying the new component name and the files to be affected by the
modification. If you click the Preview button, you can view the files

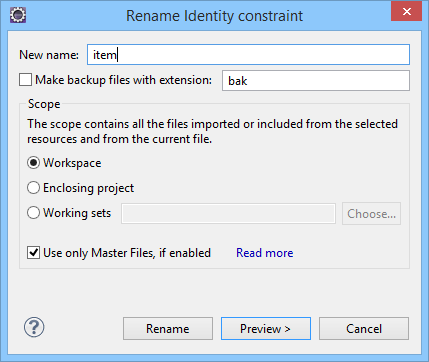

affected by the Rename Component action.Figure: Rename Identity Constraint Dialog Box
