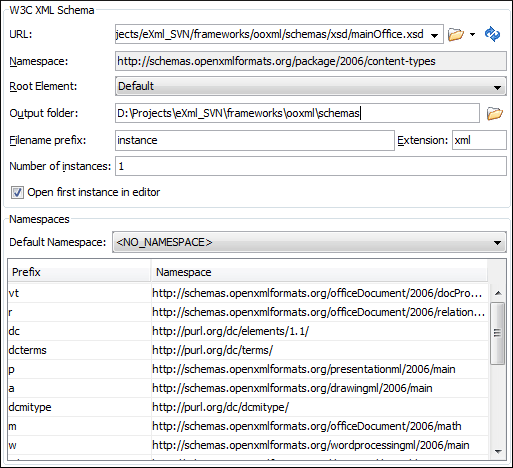

Figure: The Generate Sample XML Files Dialog Box
Complete the dialog box as follows:
- URL - Schema location as an URL. A history of the last used URLs is available in the drop-down box.
- Namespace - Displays the namespace of the selected schema.
- Document root - After the schema is selected, this drop-down box is populated with all root candidates gathered from the schema. Choose the root of the output XML documents.
- Output folder - Path to the folder where the generated XML instances will be saved.
- Filename prefix and Extension - Generated file names have the following format: prefixN.extension, where N represents an incremental number from 0 up to Number of instances - 1.
- Number of instances - The number of XML files to be generated.
- Open first instance in editor - When checked, the first generated XML file is opened in editor.
- Namespaces - Here you can specify the default namespace as well as the proxies (prefixes) for namespaces.
- Load settings / Export settings - The current settings can be saved for further usage with the Export settings button, and reloaded when necessary with the Load settings button.
